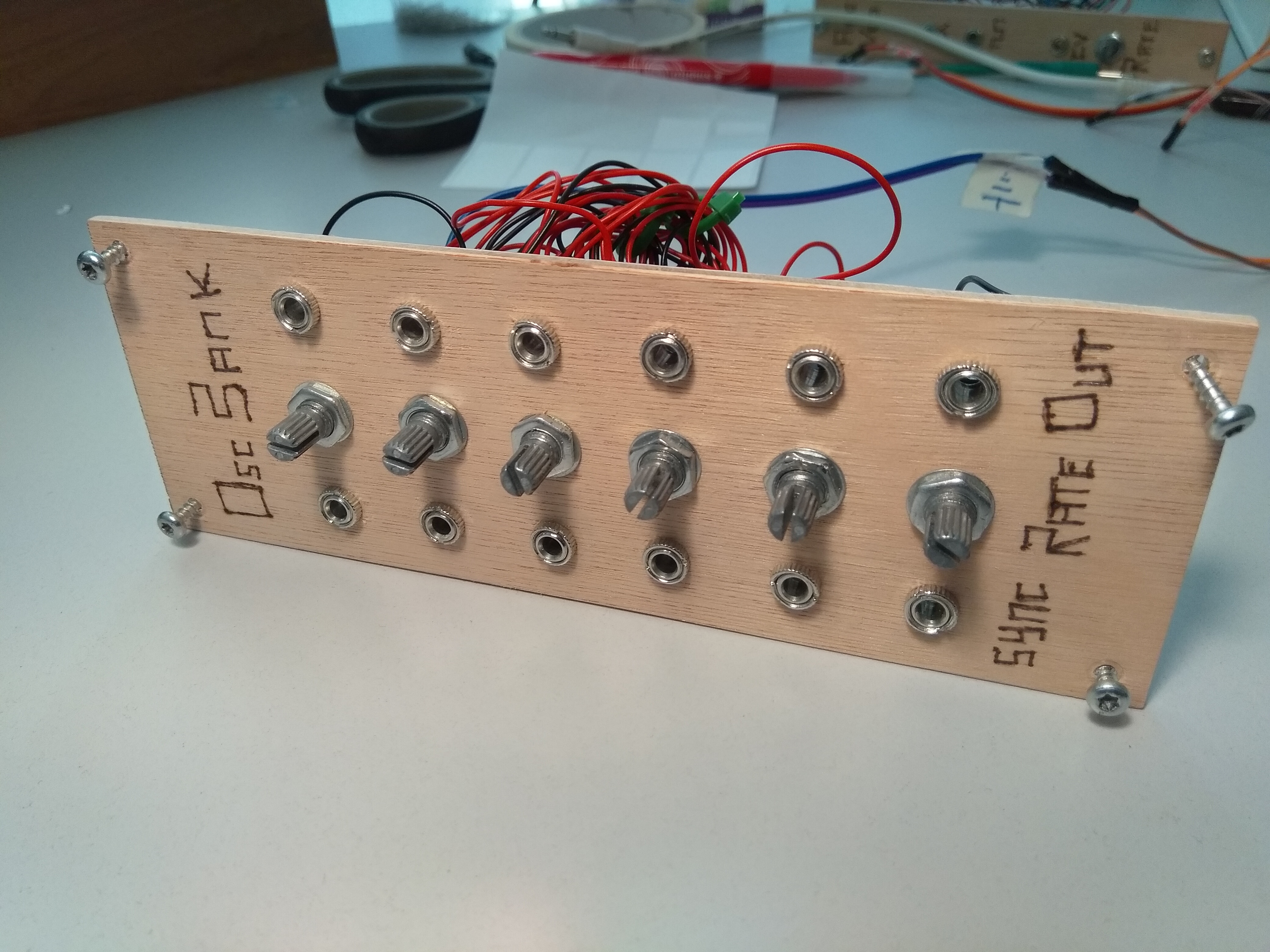

40106 OSCILLATOR BANK

june 2021

Schematic is from Kristian BlÄsol's Modular in a week. This is a very simple build to make but a lot of wires... Basically 6 square wave oscillators. By choosing different values for the capacitors you can set the frequency range and use them as a sound source or as LFO. Do note these oscillators are unipolar.

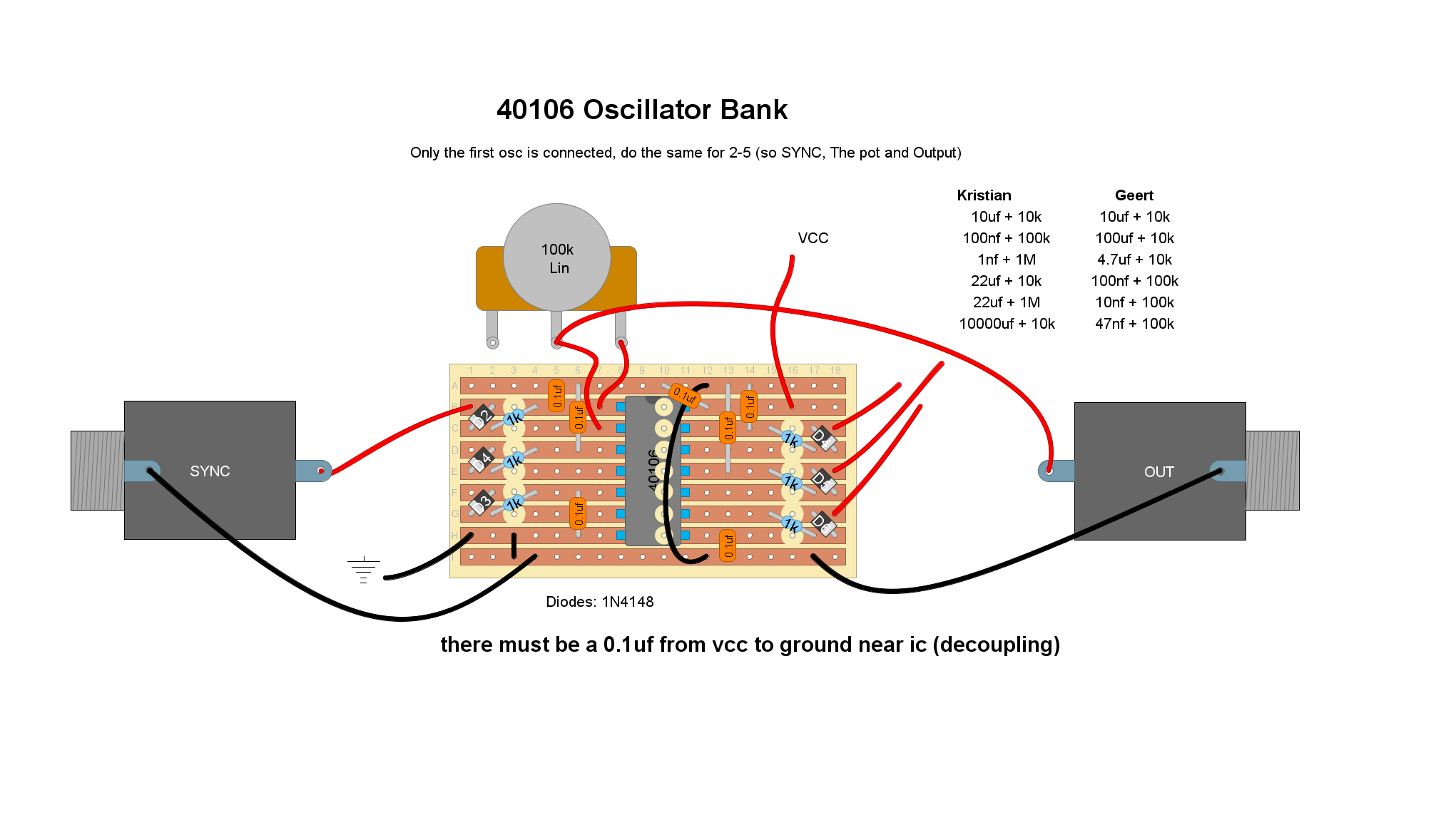

veroboard design
